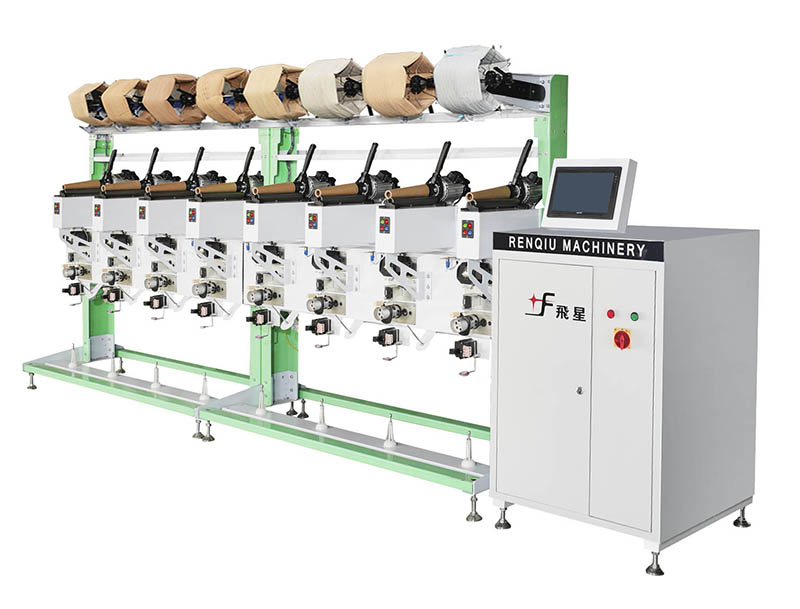

The JMo406SH3A Upper horizontal type active unwinding winder is a new high-speed winderof our company. The device is suitable for active unwinding of elastic filament, loose tube anddouble twist loose tube winding to form parallel tube or triple cone tube winding.
Advantage: Upper rack, standing operation, easy to complete the yarn, Reduce laborintensity of workers.
The structure of the device is simple, firm, light and elegant, and its winding speed is as highas 80om/min. The device adopted digital servo drive system with active yarn feeding and onlinetension control, to achieve the precise coordination of yarn feeding and winding. To set the crossangle of winding and adjust the speed ratio of the guide wire and winding arbitrarily, so as to ensurethe various process requirements of the cylinder.
| Item | Specification features |
| Mechanical form | Left and right hand single side machines, 4 spindles/section, 40 spindles/set |
| The package form | Precision winding, the digital winding |
| Thread form | Microfibril rope drag guide |
| Package shape | Parallel or tapered (3 ° 30 ') |
| Winding range | 50-600d |
| Guide stroke | 50-254mm |
| Package diameter | Φ 280mm (maximum) |
| Tensile force adjustment | Electronic online tension |
| Winding speed | Up to 800m/min |
| For the machine | Stepping motor automatic refueling |
| Operating height | 1190mm (the height of guide roller center) |
| Installed power | 350w/spindle |
| Overall dimensions | 1800mm× 710mm× 1650mm( L×W×H) |
